Precision-engineered PPG sensor arrays, biocompatible alloys, and high-density micro-battery architectures backed by full OEM/ODM engineering customization.
From micro-vacuum resin casting to 48-hour burn-in stress testing, our Shenzhen & Dongguan production lines deliver zero-defect wearable hardware.
The global wearable technology sector is undergoing a profound paradigm shift. As consumer fatigue with screens and daily smartwatch charging cycles intensifies, the smart ring form factor has emerged as the premier vehicle for continuous, frictionless biometric monitoring. As a leading China top smart ring exporter & exporters network, our engineering teams bridges the gap between complex micro-electronics miniaturization and high-volume commercial manufacturing.
Designing and mass-producing smart rings demands an architectural departure from traditional wrist-worn wearables. Achieving medical-grade accuracy within a 2.5mm to 3.5mm inner wall thickness requires extreme spatial optimization. Component placement, flex-PCB routing, optical sensor positioning, and skin-contact thermal dynamics must be engineered simultaneously under strict mechanical tolerances.
The finger provides a significantly higher signal-to-noise ratio (SNR) for Photoplethysmography (PPG) than the wrist due to the density of digital capillaries near the skin surface. China's top export-tier manufacturers leverage multi-spectral optical arrays combining red, green, and infrared LEDs paired with high-sensitivity silicon photodiodes.
Sintered zirconia ceramics, hypoallergenic medical-grade resins, and 316L stainless steel housings coated via Vacuum Physical Vapor Deposition (PVD) to prevent nickel leaching and skin irritation.

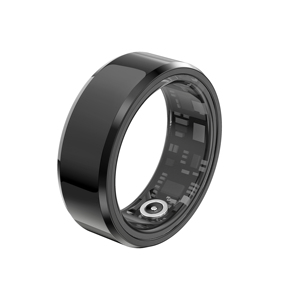

Embedded 3-axis ultra-low-power accelerometers calibrated for micro-gesture recognition. Enables touchless smartphone camera trigger, music track switching, and smart home lighting control.

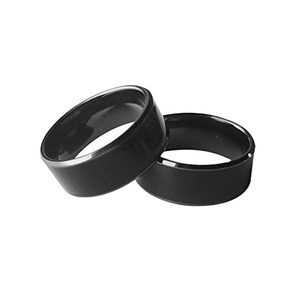

Zero-power passive NFC array chips (NTAG215/213) encapsulated within non-conductive resin segments, supporting touchless access control keys, digital business card sharing, and smart lock pairing.
Global procurement teams must look beyond superficial aesthetics when selecting an OEM partner in China. The market is maturing rapidly from novelty health bands toward clinical-grade data collection platforms. Key sourcing trends include:
A. Decoupled Mobile SDK & White-Label Ecosystems: B2B buyers increasingly request raw sensor access via open API/SDK packages. Rather than relying on rigid third-party mobile applications, enterprise distributors require custom-branded iOS and Android companion apps with cloud server synchronization tailored to corporate wellness programs or healthcare systems.
B. Multi-Frequency Charging & Contactless Docking: Traditional pogo-pin magnetic charging points are being replaced by custom wireless inductive charging cradles. Eliminating exposed metallic charging pads on the ring surface enhances corrosion resistance against human sweat and saltwater exposure, making 5 ATM waterproofing achievable across mass production.

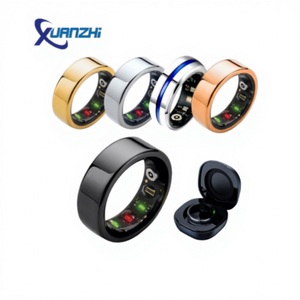

C. AI Chronotype & Predictive Sleep Staging: Next-generation smart ring exporters are integrating edge-computing micro-models into firmware. By evaluating circadian phase shifts alongside skin temperature gradients, rings automatically classify users into distinct chronotypes (e.g., Lion, Bear, Wolf) and offer actionable sleep debt remediation tips.
Below is a standardized technical specification matrix comparing export-grade smart ring tiers available for enterprise custom manufacturing:
| Architecture Feature | Entry-Level NFC / Tracker | Standard Health & Sport Ring | Flagship AI & Biometric Ring |
|---|---|---|---|
| Primary SoC / MCU | Passive RFID / Nordic BLE 5.0 | Dialog DA14531 / Realtek BLE 5.2 | Nordic nRF5340 Dual-Core BLE 5.4 |
| Optical Sensor Array | N/A | Single-Green PPG (VCNL Series) | Multi-Spectral Red+IR+Green AFE Array |
| Material Outer Housing | Resin Alloy / Stainless Steel | 316L Stainless Steel / Titanium | Medical Zirconia Ceramic + PVD Titanium |
| Water Resistance Rating | IP67 Weatherproof | IP68 / 3 ATM Swim-Proof | 5 ATM Marine Submersible (50m) |
| Battery Capacity & Life | Passive / 14 mAh (3-5 Days) | 18 mAh (5-7 Days) | 22 mAh (7-9 Days Active + Fast Charge) |
| Target Compliance Certs | CE, RoHS | CE, RoHS, FCC, BIS | CE MDR Ready, FCC, BIS, REACH, IP68 |
To ensure high compliance across stringent regulatory markets such as North America, the European Union, India (BIS), and Japan (TELEC), our production flow follows a rigorous multi-stage quality control protocol:
Clear, expert guidance on custom smart ring manufacturing, sizing kit logistics, minimum order quantities (MOQ), and compliance certification.
Smart ring sizing differs significantly from traditional jewelry sizing due to inner sensor bumps. As an OEM manufacturer, we supply customizable, non-electronic plastic sizing kits (US sizes 6 through 14) that brands distribute to end consumers prior to finalizing ring shipments. Alternatively, we provide unified master cartons containing an optimized bell-curve sizing distribution based on regional demographic data.
For laser engraving brand logos and custom gift-box packaging, our standard MOQ starts at 500 units per model. For deep customization—such as custom Bluetooth broadcast names, localized companion app UI development, or proprietary SDK integrations—the MOQ is typically 1,000 to 2,000 units depending on technical complexity.
Achieving 5 ATM waterproofing (50 meters pressure equivalent) requires eliminating mechanical seam gaps. We utilize secondary vacuum resin potting around the flex PCB and optical sensor array, followed by high-precision ultrasonic bonding or seamless micro-screw sealing. Every unit undergoes automated pneumatic pressure testing before leaving the factory.
All export-ready smart ring lines ship with complete compliance documentation tailored to destination markets. This includes CE-RED, FCC ID, RoHS 2.0, REACH, UN38.3 (lithium battery transport safety), MSDS, and BIS certification for the Indian market. Full lab test reports are made available to enterprise buyers prior to invoice settlement.
Yes. Our in-house firmware engineers provide comprehensive API documentation, Android/iOS SDKs, and Bluetooth protocol specifications. This allows corporate wellness platforms, hotel keycard systems, or medical telemetry providers to ingest raw heart rate, HRV, temperature, and motion data directly into their cloud infrastructure.
We provide a formal 12-month factory warranty on all smart ring hardware. Production lots operate under a strict AQL 0.65 Level II quality standard. In the rare event of a defective unit, we issue direct credit replacement in the subsequent shipment order or supply spare units (0.5% - 1% buffer stock) with master shipments.
Partner with China's leading smart ring OEM exporter. Contact our engineering desk today for product samples, SDK access, and custom OEM/ODM quota proposals.
